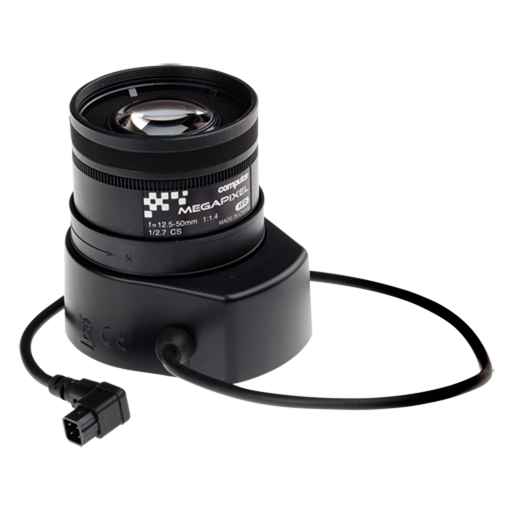

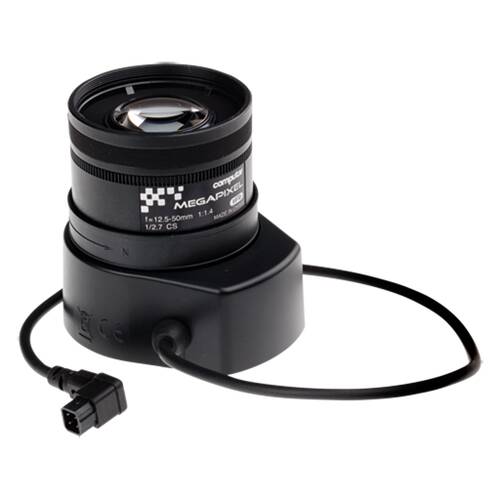

AXIS Linse COMPUTAR CS 12.5-50MM DC-IRIS
Beschreibung AXIS Linse COMPUTAR CS 12.5-50MM DC-IRIS
Neu
- Suitable for color and day/night cameras
- Telephoto, 12.5-50 mm lenses
- IR-corrected lenses
- DC-iris
Megapixel lens to see it all
With its unique HD optical design, the Computar 12.5-50 mm lenses provide larger image circle for exceptional brightness and clarity in corners and throughout image plane. The focal length is 12.5?50 mm and the lenses fast aperture (F-number) is 1.4.
Compatible cameras
The Computar 12.5-50 mm Lenses with DC-iris are recommended for use with the following Axis cameras. The lenses are day/night corrected and therefore no adjustments will be needed when the IR-cut filter of the day/night camera disengages.
Computar 12.5-50 mm, DC-iris Lens:
Camera Image sensor Angle of view
AXIS P1353/-E 1/3" 20°-6°
AXIS P1354/-E 1/3" 20°-6°
AXIS Q1602/-E 1/3" 20°-6°
AXIS Q1604/-E 1/3" 20°-6°
| Kamera | Bildsensor | Sichtwinkel |
| AXIS M1134 | 1/2.9" | 24°-7° |
| AXIS M1135/-E | 1/2.9" | 24°-7° |
| AXIS M1137/-E | 1/2.7" | 22°-7° |
Downloads
| Datenblatt | Download |
Kompatible Produkte
- AXIS M1135 Mk II
- AXIS M1135 Mk II i-CS
- AXIS M1135-E Mk II
- AXIS M1135-E Mk II i-CS
- AXIS M1137 Mk II
- AXIS M1137-E Mk II
-
AXIS M1124
EOL
-
AXIS M1124-E
EOL
-
AXIS M1125
EOL
-
AXIS M1125-E
EOL
-
AXIS M1134
EOL
-
AXIS M1135
EOL
-
AXIS M1135-E
EOL
-
AXIS M1137
EOL
-
AXIS M1137-E
EOL
-
AXIS P1353
EOL
-
AXIS P1353-E
EOL
-
AXIS P1354
EOL
-
AXIS P1354-E
EOL
-
AXIS P1357
EOL
-
AXIS P1357-E
EOL
-
AXIS P1364
EOL
-
AXIS P1364-E
EOL
-
AXIS P1365 MK II
EOL
-
AXIS P1365-E MK II
EOL
-
AXIS Q1602
EOL
-
AXIS Q1604
EOL
-
AXIS Q1604-E
EOL
-
AXIS Q1615 MK II
EOL
-
AXIS Q1615-E MK II
EOL
Spezifikationen
| Model number | AX5800-791 |
| EAN-Code | 7331021007017 |
| Marke | AXIS |
| Kategorie |
Andere Produkte
Verschiedenes
|
| HS-Code |
900211
|
| Herkunftsland |
China
|
| Gewicht |
180 Gramm
|
| Größe (lxbxh) |
130
x 120 x 95 millimeters
|
|
Verschiedenes
|
Objektive CS/C Mount
|
| Veröffentlichungsdatum | 18.07.2019 |
