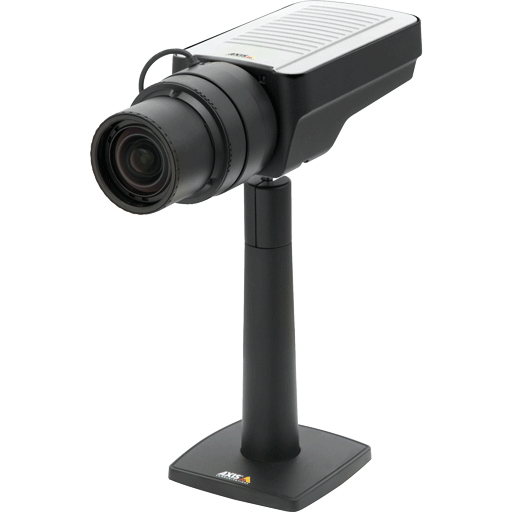

AXIS Q1635

• 1/2 sensor, day/night, fixed camera with varifocal DC-iris lens and remote back focus, support for P-Iris lenses.
• Support for multiple, individually configurable H.264 and Motion JPEG streams; HDTV 1080p or 2 MP resolution at 50/60 frames per second.
• WDR-Forensic Capture and Lightfinder technology for demanding lighting conditions.
• Electronic image stabilization and a defogging functionality to improve video quality.
• Video motion detection, active tampering alarm and shock detection.
• Two-way audio with built-in microphone, audio detection and I/O for alarm/event handling.
• Serial port for RS485/RS422 communication.
• Memory card slot for optional local video storage. Power over Ethernet or 8-28 V DC input.
• Power supply not included

Equipped with a 1/2 sensor, AXIS Q1635 offers extreme light sensitive images, capability especially useful in city surveillance and traffic monitoring, where vehicles are often fast moving and challenging to capture.

Axis WDR Forensic Capture optimizes video for forensic purposes by enabling an extremely high level of detail to be visible in both dark and bright areas of a scene. AXIS Q1635 with WDR Forensic Capture applies advanced algorithms to optimize image quality and includes the ability to seamlessly transition between WDR and Lightfinder mode.

with WDR Without WDR

Steady video during vibration

The electronic image stabilization greatly improves video quality in situations where the camera is subject to vibration and the video, without electronic image stabilization, would be troublesome to view. Hence, the vibration effects are greatly reduced resulting in smoother and steadier video.

Innovative installation features

AXIS Q1635 includes new innovative features to help installers to mount the camera. The leveling assistance guides to the correct level, meaning that the camera can be installed wherever but always have a perfect image. The auto rotation functionality flips the image to the right orientation, also when Corridor Format.
Moreover, AXIS Q1635 supports focus assistant, remote back focus and pixel counter, capabilities already known in the AXIS Q16 Series. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism.

More features

• Intelligent capabilities such as enhanced video motion detection, audio detection and detection of camera tampering attempts like blocking or spray-painting
• Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
• Two-way audio support with enhanced audio quality
• SD/SDHC memory card slot for storing recordings locally
• Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service.

Außengehäuse Für Q1635 : T93F20
